Cumulative frequency and box plots

Cumulative frequency graphs and box plots show how data is spread, and let you compare groups.

Practise this lesson free (6 questions)

More tools

Cumulative frequency

A running total of the frequencies. Plot each total at the upper end of its group and join with a smooth curve.

Reading the graph

With n values:
Median: read across at n2.
Lower quartile (LQ): at n4. Upper quartile (UQ): at 3n4.
Interquartile range (IQR) = UQ − LQ
10 20 30 40 50 60 10 20 30 40 50 60 70 80 Value Cumulative frequency LQ = 23 median = 31 UQ = 41 n/4 n/2 3n/4 IQR = 41 − 23 = 18
Reading the median and quartiles from a cumulative frequency curve (n = 80): IQR = 41 − 23 = 18.

Box plots and comparing

A box plot shows minimum, LQ, median, UQ and maximum.
To compare groups, compare an average (median) and a spread (IQR), in context.
min 5 LQ 23 median 31 UQ 41 max 59 0 10 20 30 40 50 60 IQR = 18
A box plot shows the minimum, LQ, median, UQ and maximum.
Worked example

For 80 values, the LQ is 23 and the UQ is 41. Find the IQR.

  1. IQR = UQ − LQ = 41 − 23

Answer: 18

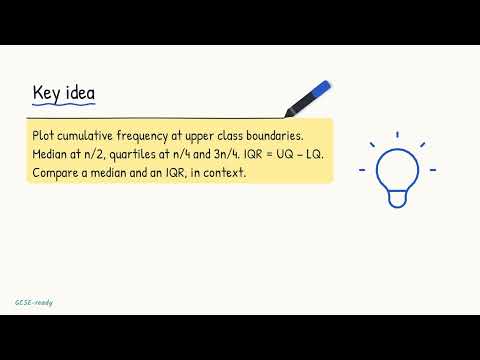

Key idea

Plot cumulative frequency at upper class boundaries. Median at n/2, quartiles at n/4 and 3n/4. IQR = UQ − LQ. Compare a median and an IQR, in context.

Key words
Cumulative frequency
A running total of frequencies, used to estimate the median and quartiles.
Median
The middle value when the data are in order.
Quartiles
The values a quarter (lower quartile) and three quarters (upper quartile) of the way through ordered data.
Interquartile range (IQR)
Upper quartile minus lower quartile. It measures the spread of the middle half of the data.
Range
The largest value minus the smallest value. It measures spread.
Box plot
A diagram showing the minimum, lower quartile, median, upper quartile and maximum of a data set.

All GCSE and International GCSE Mathematics key terms and definitions →

Quick check

Try two quick questions

See if it has sunk in. Answers are marked straight away.

Extra practice

2 more questions

Try each one, then tap to check.

  1. A box plot has LQ 13 and UQ 35. Find the interquartile range.

    Show the answer

    Answer: 22

    35 − 13 = 22.

  2. There are 160 values on a cumulative frequency graph. At what cumulative frequency do you read the median?

    Show the answer

    Answer: 80

    Median at n2 = 80.
